FTTH Mini 1x2 Fiber PLC Splitter With SC/APC Connector

Brand Name : UT-King

Model Number : 1X2 SC APC Mini PLC

Certification : RoHS, CE, ISO9001

Place of Origin : Guangdong

MOQ : 1 pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs per week

Delivery Time : 5-10 days

Packaging Details : 1pcs 1 Plastic Boxes

Application : FTTH Networking

Type : Mini Type 1x2

Fiber Type : G657A1

Connector Type : SC/APC

Wavelength : 1260-1650nm,1310nm/1550nm

Model : SM/MM

Insertion Loss : ≤4.1dB

Splitter Ratio : 1*2

Return Loss（dB） : ≥55

Fiber Length : 1m,1.5m Or Customized

Contact Now

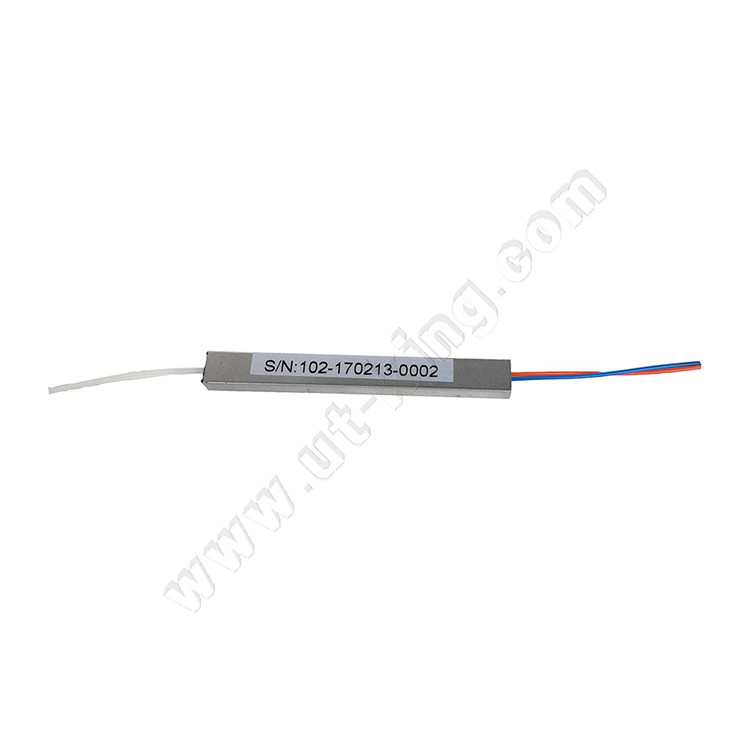

Mini Type Steel Tube Fiber Optic Ftth Fiber Splitter PLC 1x2 SC/Apc Connector

Description

UT-King's Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

The PLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber. Once everything is aligned and bonded, it is then packaged inside a miniature housing.

Features

  • Low Insertion loss and Low PDL
  • Uniform power splitting
  • High reliability
  • Excellent environmental stability
  • Compact size and various package

Specification

Item 1x2 1x3 1x4 1x6 1x8 1x12
Operating Wavelength(nm) 1260-1650
Fiber Type G657A1 or as customers' order
Connector SC/FC/LC
Ferrule section UPC/APC
Insertion loss(dB) ≤4.1 ≤6.4 ≤7.4 ≤9.3 ≤10.5 ≤12.8
Loss uniformity(dB) ≤0.4 ≤0.4 ≤0.6 ≤1.6 ≤0.8 ≤1.2
Return Loss(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Polarization Dependent Loss(dB) ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.25
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55

Temperature correlation loss

-40～85℃(dB)

 ≤0.5 ≤0.5 ≤0.5 ≤1.5 ≤0.5 ≤0.5
Size(mm)(LxWxH) 40×4×4 60×7×4
Working Temperature(℃) -40～85
Storage Temperature(℃) -40～85
Item 1x16 1x24 1x32 1x48 1x64 1x128
Operating Wavelength(nm) 1260-1650
Connector SC/FC/LC
Ferrule section UPC/APC
Fiber Type G657A1 or as customers' order
Insertion loss(dB) ≤13.8 ≤15.8 ≤16.8 ≤18.7 ≤20.5 ≤24.1
Loss uniformity(dB) ≤1.2 ≤1.5 ≤1.5 ≤2.0 ≤2.0 ≤2.5
Return Loss(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Polarization Dependent Loss(dB) ≤0.25 ≤0.3 ≤0.3 ≤0.4 ≤0.4 ≤0.4
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55

Temperature correlation loss

-40～85℃(dB)

 ≤0.5 ≤0.5 ≤0.5 ≤1.5 ≤0.5 ≤0.5
Size(mm)(LxWxH) 60×7×4 60×12×6 N/A
Working Temperature(℃) -40～85
Storage Temperature(℃) -40～85

Details of Picture

FTTH Mini 1x2 Fiber PLC Splitter With SC/APC ConnectorFTTH Mini 1x2 Fiber PLC Splitter With SC/APC ConnectorFTTH Mini 1x2 Fiber PLC Splitter With SC/APC Connector
